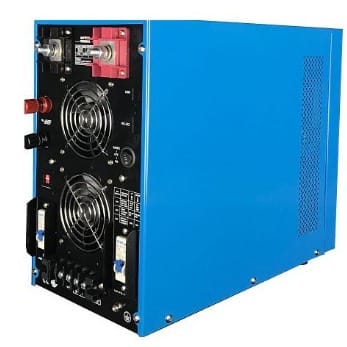

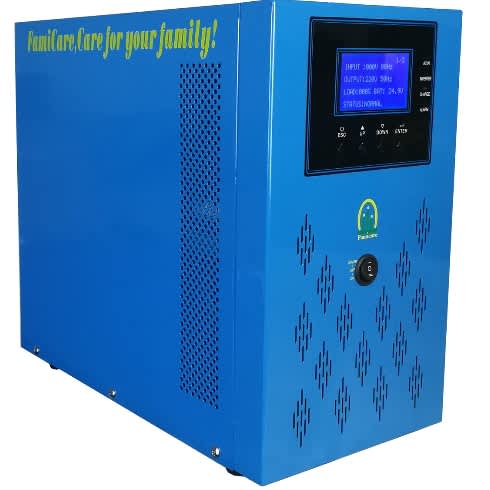

Famicare 2.5KVA 24V

Hybrid Transformer Inverter – Pure Copper – Low Voltage Charge 155V – Solar Ready

DESCRIPTION:

ORIGINAL FAMICARE 2.5KVA (2500VA) HYBRID TOWER INVERTER – IN STOCK IBADAN

This is the best inverter for 2 bedroom flat and small shop. Heavy duty transformer, not high frequency.

KEY FEATURES:

✅ 2500VA / 1800W – Powers 2 Bedroom Flat Fully

✅ 24V System – Works with 2 batteries (2 x 12V 200Ah recommended)

✅ PURE COPPER TRANSFORMER – Heavy duty, can carry Fridge or Freezer (one at a time)

✅ LOW VOLTAGE CHARGE – Charges battery even when NEPA is 155V – Other inverters will not charge

✅ ONLINE UPS MODE – Zero transfer time, your DSTV and TV will not blink

✅ SOLAR READY – Inbuilt PWM solar controller (60A) – Connect solar panel direct

TECHNICAL SPECIFICATION:

Model: Famicare 2.5KVA 24V

Capacity: 2500VA / 1800W

DC Input: 24VDC

AC Input: 155V – 280V (wide range)

AC Output: 220V 50Hz Pure Sine Wave

Inbuilt Solar Controller: 60A PWM 24V

Max Solar VOC: 60VDC

Solar Voltage Range: 30-60V

Net Weight: ~14KG (Pure Copper)

WHAT IT CAN CARRY:

– 10 bulbs, 2-3 Fans, 2 TVs, DSTV, Home Theater

– Fridge OR Freezer (one at a time, not both together)

– 0.5HP pumping machine

SOLAR CONNECTION GUIDE:

– 1 x 550W panel = OK

– 2 x 300W or 2 x 400W in PARALLEL = OK

– DO NOT connect panels in SERIES – Max 60V only
